Telekommand



TL1002

The slave unit TL1002 connects directly to a lamp or ballast.

These units come in three types: AC, DC and for current controlled loads such as LEDs.

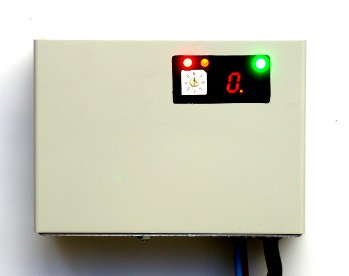

The only user serviceable function is selecting which group the unit is associated with and this is done using a simple 8 position rotatory switch. The unit also has an LED display showing which group the unit is currently assigned to and will also display any malfunctions.

There is no minimum power requirement. For instance, a 3200VA unit is capable of driving any resistive load from 0W to 3200W. The same applies to inductive loads, taking in account its power factor. This unit is suitable for driving electric motors. It is protected against overheating.


The TL1003 is similar to the TL1002, albeit in a smaller size. It only measures 50x50x24 millimeters and is built from ABS and aluminium instead of incorporating a full metal enclosure. Initially it is only available for AC (TRIAC). Its smaller size allows it to be placed inside backboxes. It can control loads as big as 250W but its power is limited to 100W when placed inside a backbox. The group selection is done by means of a push button. For more technical information and operation diagrams please click here.

Variants

Note that some of these variants are manufactured to order. Please contact us for more information.

Model Output Stage Type Load Uses
TL1002T Triac, upto 240VAC, 50Hz and 60Hz 3 models, upto 400VA, 1600VA and 3200VA, more powerful versions available under minimum order quantity, please contact us. Lighting,machine automation.
TL1002M
(manufactured to order)
MOSFET, upto 50V DC 400W, more powerfull available under minimum order quantity, please contact us. Lighting, machine automation.
TL1002C
(manufactured to order)
MOSFET, PWM constant current regulated, upto 30V DC Programmable for different intensities from 250mA to 1300mA (1.3A), please consult user manual.
LED lighting.
